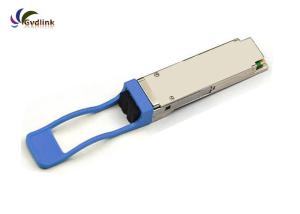

1310nm 10km LC Optical Transceiver Mellanox QSFP28-LR4-100/112G WDM DML

Brand Name : Gvdlink

Model Number : GVD-QSFP-100G-LR4-S

Certification : CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C,Paypal

Supply Ability : 3500pcs per week

Delivery Time : 1-5 working days

Packaging Details : Standard neutral or brand packing

Product name : optical transceiver

Type : QSFP28

Data Rate : 100Gb/s

Wavelength : 1310nm

Distance : 10km

Connector : LC

Transmitter Type : 4 x LAN WDM DML TOSA

Operating temprature : -20~70 C -40~85 C

Warranty : 3 years

Contact Now

Mellanox QSFP28-LR4-100/112G Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km DOM LC SMF Optical Transceiver Module

Mellanox QSFP28-LR4-100/112G Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

Description

item Description
Part number QSFP28-LR4-100/112G
Version support Supported in V200R001C00 and later versions
Transceiver form factor QSFP28
Transmission speed 100GE
Center wavelength (nm) 1295, 1300, 1304, 1309
Standards compliance 100GBASE-LR4 and 112GBASE-OTU4
Connector type LC
Type of the end face of the fiber ceramic ferrule PC or UPC
Applicable cable and maximum transmission distance Single-mode fiber (G.652) (with diameter of 9 μm): 10 km
Modal bandwidth -
Transmit power (dBm) -4.3 to +4.5
Maximum receiver sensitivity (dBm) -8.6
Overload power (dBm) 4.5
Extinction ratio (dB) ≥ 2
Operating temperature 0°C to 70°C

Applications

  • Fully compatible with almost all Mellanox devices
  • Widely used on 100G switches, routers, servers, NICs and other transmission equipment
  • Suitable for 100G Ethernet, 112G OTN OTU4, telecom, 5G wireless network

Mellanox QSFP28 100G Product series

Mellanox Model Description
MMA1L10-CR 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF
MMS1C10-CM 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF
MMA1B00-C100D 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF
MMA1L30-CM 100GBASE-CWDM4 QSFP28 1310nm 2km LC SMF
QSFP28-EIR4-100G 100GBASE-4WDM-10 QSFP28 1310nm 10km DOM LC SMF
QSFP28-ER4-100G 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF
QSFP28-LR4-100/112G 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 10km LC SMF
QSFP28-LR4-100/112G-20 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 20km DOM LC SMF
QSFP28-ER4-100/112G 100GBASE-ER4 and 112GBASE-OTU4 QSFP28 Dual Rate 1310nm 40km DOM LC SMF
MMA1L10-CR-I 100GBASE-LR4 QSFP28 1310nm 10km DOM LC SMF
